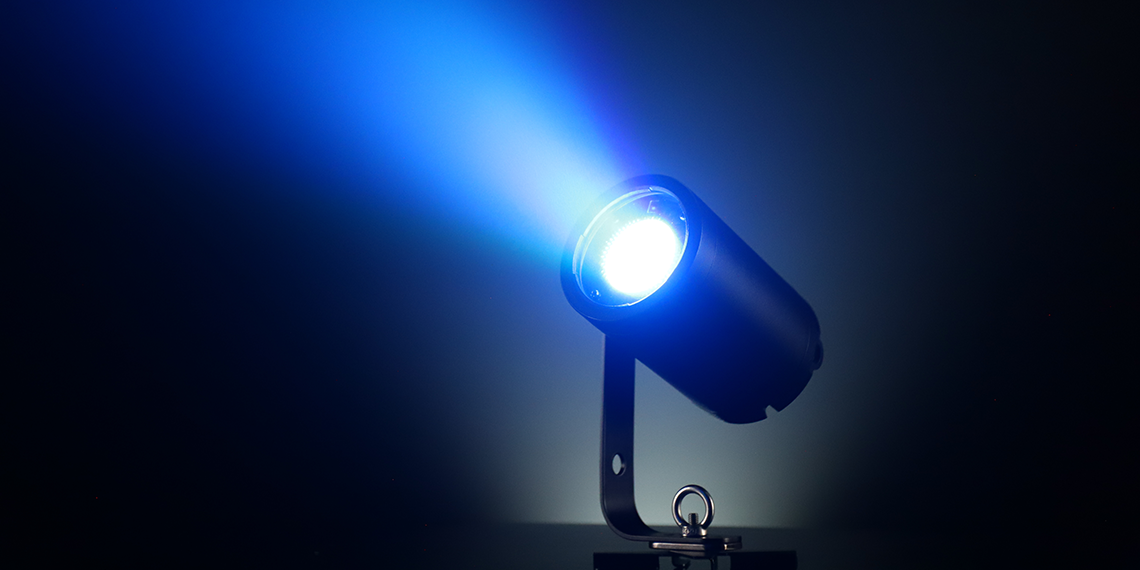

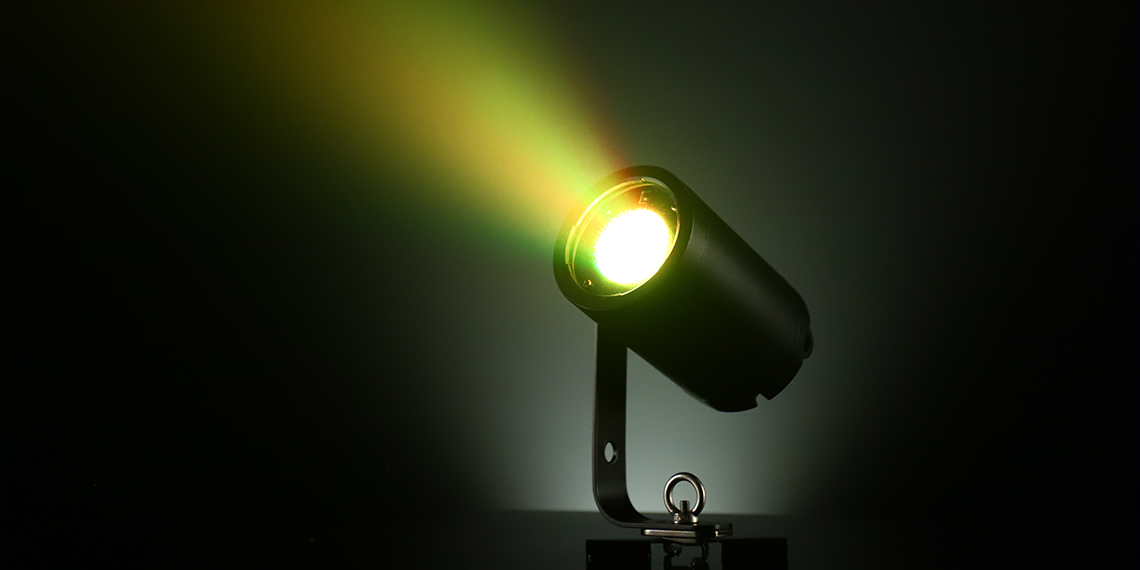

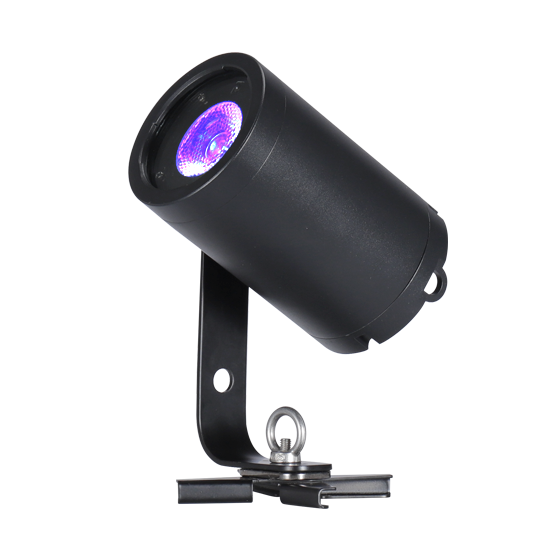

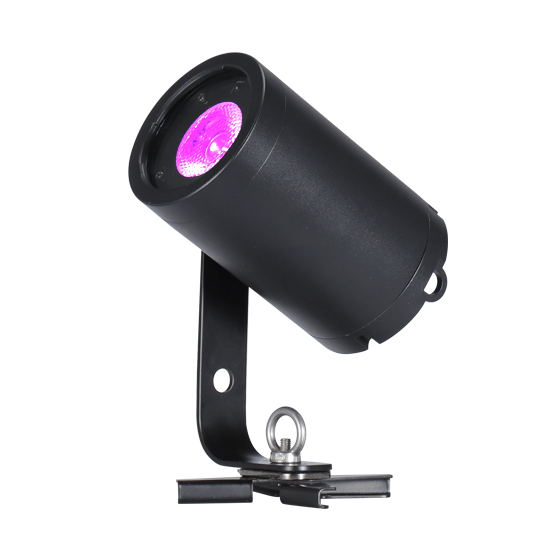

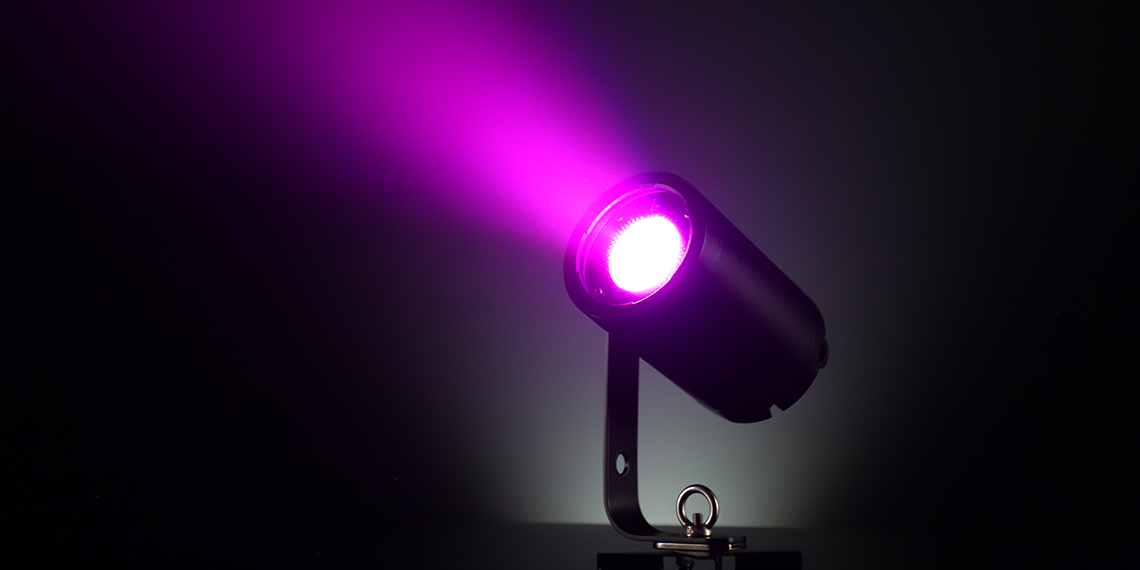

Lily Pinspot Battery&Wireless LED DJ Lights

Technique

● Power supply: AC110V-250V
● Frequency: 50-60Hz
● Power consumption: 20W
● Light source: 1pcs 20W high brightness 6 in 1 leds
● Lamp life: 6-10 ten thousand hrs
● LED angle: 12 degree
● Color: 16.7 million kinds of color change
● Control channels: 6/10 chs
● Control mode: DMX512, master/slave, auto, sound active
● Automatic model(by function button) : color change, color strobe, color dimmer, color gradual change/color jump change

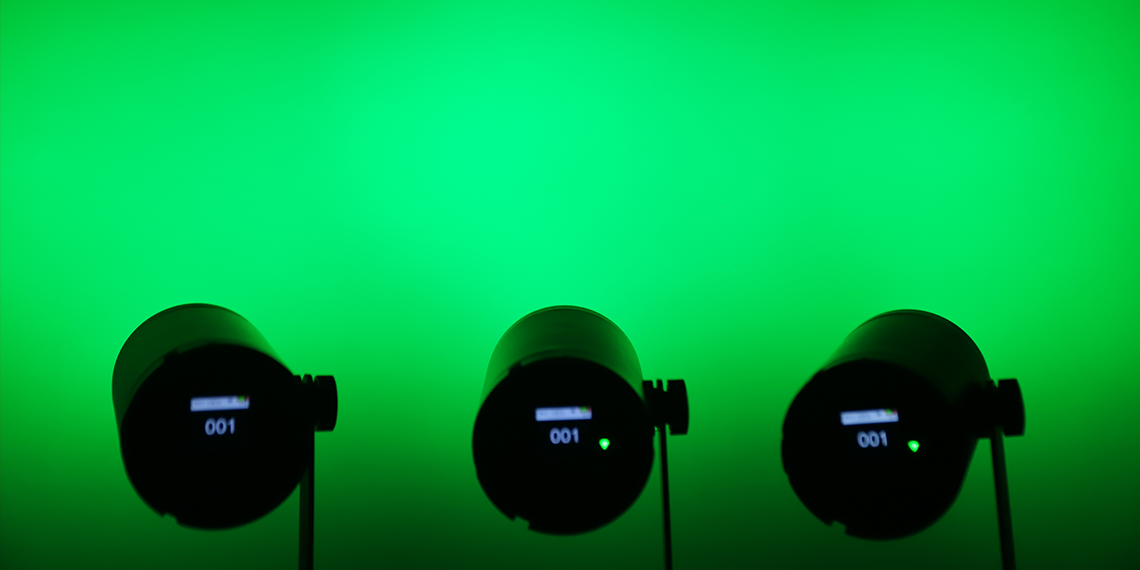

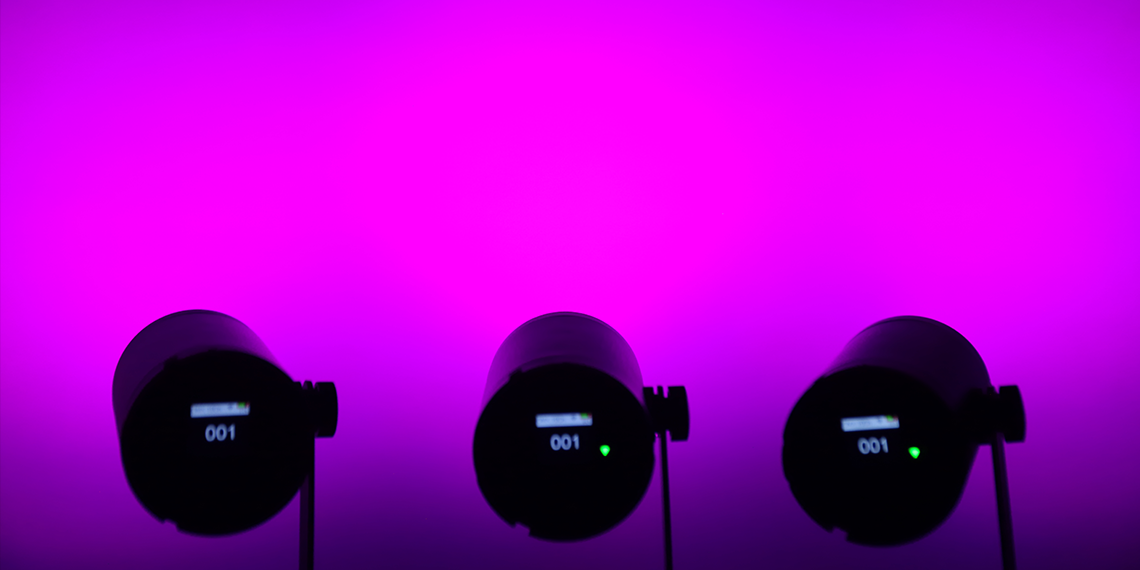

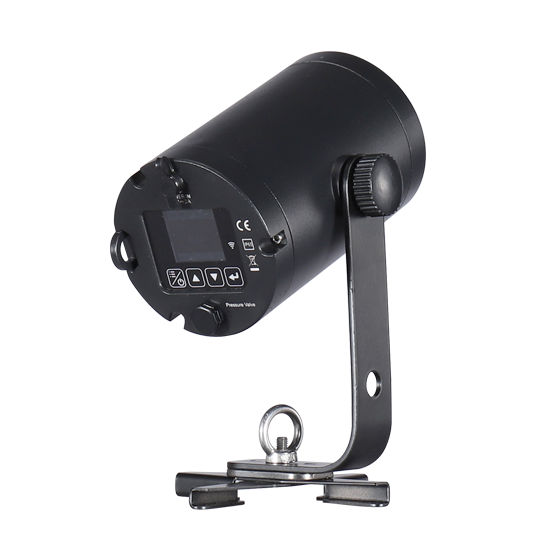

● Operation menu: LCD display
● Packing size: 290*290*330mm
● N.W: 1.5kg
● G.W: 1.8kg

Operating Instructions

Operating Modes：

Sound activation – The unit will activated by the sound signal.
Static display – The unit will display the color in static way.
Auto Mode -The unit will automatically chase through the different patterns.
DMX control mode -This function will allow you to control the lighting with a standard DMX 512 controller.
Battery powered – This function will allow you to control the lighting independently without any DMX cable

DMX Mode:

Operating through a DMX controller give the user the freedom to create their own

programs tailored to their own individual needs. This function also allows you to use your

fixtures as pattern changing lights.
